MCOB21605G1V-EWS
Alphanumeric OLED, 16 x 2, White on Black, 5V, Parallel, Cyrillic, English, Euro, 5.55 mm

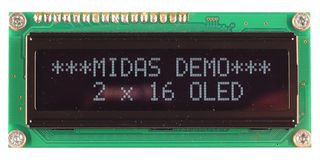

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCOB21605G1V-EWS
Order Code4048492
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$237.05 |
| 5+ | HK$225.72 |
| 10+ | HK$207.80 |
| 50+ | HK$197.76 |
| 100+ | HK$193.66 |
Price for:Each
Minimum: 1
Multiple: 1
HK$237.05
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCOB21605G1V-EWS
Order Code4048492
Technical Datasheet
Character Count x Line16 x 2
Display AppearanceWhite on Black
Logic Voltage5V
Interface TypeParallel
Font SetCyrillic, English, Euro
Character Size5.55mm
Module Size80mm x 36mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOB
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
- 2.29” character OLED (Organic Light Emitting Diode) display with 16 characters x 2 lines
- White characters on black background appearance
- Chip on board construction
- MS0010 controller type, SPI interface
- Superb all-round view angles
- Built-in multi font sets
- Wide temperature range, -40°C to +80°C operating temperature
- 16 SIL top left connection
- 80.00mm x 36.00mm x 10.00mm panel size, 66.00mm x 16.00mm viewing area
- 5.55mm character height
Technical Specifications
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
Cyrillic, English, Euro
Module Size
80mm x 36mm
Operating Temperature Max
80°C
Product Range
-
Display Appearance
White on Black
Interface Type
Parallel
Character Size
5.55mm
Operating Temperature Min
-40°C
Display Construction
COB
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
