MDOB256064D1Y-WS
Graphic OLED, 256 x 64 Pixels, White on Black, 3.3V, SPI, 70mm x 22mm, -40 °C

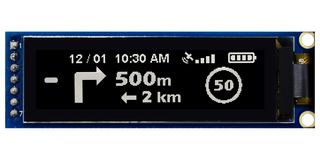

Image is for illustrative purposes only. Please refer to product description.
65 In Stock
Need more?
65 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$204.740 |
| 5+ | HK$190.080 |
| 10+ | HK$175.410 |
| 50+ | HK$173.170 |
| 100+ | HK$170.930 |
Price for:Each
Minimum: 1
Multiple: 1
HK$204.74
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOB256064D1Y-WS
Order Code3407300
Technical Datasheet
Resolution256 x 64 Pixels
Display AppearanceWhite on Black
Logic Voltage3.3V
Interface TypeSPI
Module Size70mm x 22mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOB
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Module dimension: 70.0 x 22.0 x 1.71mm
- Active area: 51.18 x 12.78mm
- Dot Matrix: 256 x 64 Dots
- Pixel Size: 0.18 x 0.18 mm
- Pixel Pitch: 0.20 x 0.20 mm
- Display Mode: Passive Matrix
- 1/64 Duty
- Grey Scale: 4 Bits
- Display Colour: White
- IC: SSD1362
- Interface: SPI
- Size: 2.08"
Technical Specifications
Resolution
256 x 64 Pixels
Logic Voltage
3.3V
Module Size
70mm x 22mm
Operating Temperature Max
80°C
Product Range
-
Display Appearance
White on Black
Interface Type
SPI
Operating Temperature Min
-40°C
Display Construction
COB
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.07
