                      42816-0212

                      Connector Housing, PBT, Black, Mini-Fit Sr. 42816 Series, Receptacle, 2 Ways, 10 mm

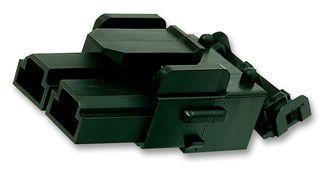

                      MOLEX 42816-0212
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMOLEX
                      Manufacturer Part No42816-0212
                      Order Code3075783
                      Product RangeMini-Fit Sr. 42816 Series
                      Also Known AsGTIN UPC EAN: 800754381628
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      57,407 In Stock

                      Need more?

                      4980 Delivery in 1-2 Business Days(SG stock)
                      52427 Delivery in 3-4 Business Days(UK stock)
                      QuantityPrice
                      1+HK$9.570
                      10+HK$8.480
                      25+HK$8.020
                      50+HK$7.740
                      100+HK$7.410
                      250+HK$6.980
                      500+HK$6.700
                      1000+HK$6.570
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      HK$9.57
                      Add Part No. / Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMOLEX
                      Manufacturer Part No42816-0212
                      Order Code3075783
                      Product RangeMini-Fit Sr. 42816 Series
                      Also Known AsGTIN UPC EAN: 800754381628
                      Technical Datasheet

                      Data Sheet

                      Product RangeMini-Fit Sr. 42816 Series
                      GenderReceptacle(View Associated Connectors)
                      No. of Positions2Ways
                      Pitch Spacing10mm
                      For Use WithMolex 42815 Series TPA and Female Crimp Terminals
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      42816-0212 is a 42816 series, single row, 2 circuit, 10mm pitch Mini-Fit Sr. receptacle housing. It mates with 42818 10.00mm Pitch Mini-Fit Sr. single row plug housings, 42819 Mini-Fit Sr. vertical single row headers, 42820 Mini-Fit Sr. right-angle single row headers. It is used with 42815 Mini-Fit Sr. female crimp terminals.

                      • CSA LR19980, UL E29179 approved
                      • 94V-0 flammability
                      • Black polyester resin
                      • Lock to mating part and polarized to mating part
                      • Operating temperature range from -40°C to +105°C
                      • Power, wire-to-board, wire-to-wire application

                      Technical Specifications

                      Product Range

                      Mini-Fit Sr. 42816 Series

                      No. of Positions

                      2Ways

                      For Use With

                      Molex 42815 Series TPA and Female Crimp Terminals

                      Gender

                      Receptacle

                      Pitch Spacing

                      10mm

                      SVHC

                      No SVHC (21-Jan-2025)

                      Technical Docs (8)

                      Drawing EN

                      Technical Data Sheet EN

                      Product Change Notice EN

                      One Page Summary EN

                      Technical Data Sheet EN

                      3D Product Image EN

                      CAD Multiple Formats EN

                      Miscellaneous EN

                      Associated Products

                      5 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Malaysia
                      Country in which last significant manufacturing process was carried out
                      Tariff No:39269097
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.004929
