43030-0004
Contact, Micro-Fit 3.0™, Micro-Fit 3.0 43030, Socket, Crimp, 26 AWG, Tin Plated Contacts
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$0.517 |
| 1000+ | HK$0.439 |
Product Information
Product Overview

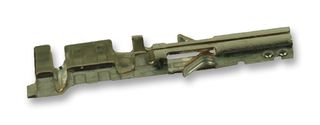

The 43030-0004 is a Micro-Fit 3.0™ female socket crimp terminal made of phosphor bronze with tin plated finish. This 43030 series female crimp terminal accepts 30 to 26AWG wire. The socket terminal mates with 43031 Micro-Fit 3.0™ male crimp terminals. It can be used with 43025, 43645 Micro-Fit 3.0™ receptacle housings and 44133 Micro-Fit BMI™ panel mount receptacle housings. The terminal is suitable for power applications.
- Locking tab on terminal secures terminal in housing
- Maximum current per contact is 5A
Applications
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Technical Specifications
Micro-Fit 3.0 43030
Crimp
Tin Plated Contacts
30AWG
No SVHC (21-Jan-2025)
Socket
26AWG
Molex Micro-Fit 3.0 43025, 43645 & Micro-Fit BMI 44133 Series Receptacle Housing Connectors
Phosphor Bronze
Alternatives for 43030-0004
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
