55091-0874..
Mezzanine Connector, Header, 0.635 mm, 2 Rows, 80 Contacts, Surface Mount, Copper Alloy

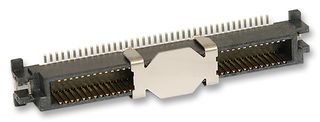

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No55091-0874..
Order Code1508061
Product RangeSlimStack 55091
Also Known AsGTIN UPC EAN: 822348448661
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMOLEX
Manufacturer Part No55091-0874..
Order Code1508061
Product RangeSlimStack 55091
Also Known AsGTIN UPC EAN: 822348448661
Technical Datasheet
Mezzanine Connector TypeHeader
Pitch Spacing0.635mm
No. of Rows2Rows
No. of Contacts80Contacts
Connector MountingSurface Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product RangeSlimStack 55091
SVHCNo SVHC (07-Jul-2017)
Product Overview
The 55091-0874 is a 80-position 2-row vertical stacking surface mount SlimStack™ Header with gold-plated copper contacts. The SlimStack™ high-speed micro-miniature board-to-board stacking connector with speed up to 20Gbps and pitch size of 0.635mm provide space-saving design flexibility. It mates with SlimStack™ receptacle 52760, 52837, 52885 and 52901.
- Robotic placement metal cap
- 0.5A Maximum current per contact
- 100V Maximum voltage
Applications
Consumer Electronics, Medical, Wireless, Portable Devices, Communications & Networking
Technical Specifications
Mezzanine Connector Type
Header
No. of Rows
2Rows
Connector Mounting
Surface Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (07-Jul-2017)
Pitch Spacing
0.635mm
No. of Contacts
80Contacts
Contact Material
Copper Alloy
Product Range
SlimStack 55091
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001
