1AS1T2B4M6RE

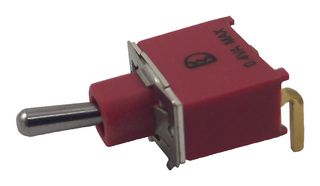

Toggle Switch, On-On, SPDT, Non Illuminated, 1AS, Through Hole, 100 mA
Image is for illustrative purposes only. Please refer to product description.
79 In Stock
Need more?
79 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$22.130 |
| 10+ | HK$18.040 |
| 50+ | HK$16.820 |
| 150+ | HK$15.270 |
Price for:Each
Minimum: 1
Multiple: 1
HK$22.13
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Product Overview
The 1AS1T2B4M6RE is a SPDT non-illuminated through-hole PCB-mount Toggle Switch with ON-ON switch function and solder switch terminal. It has glass filled nylon 66 heat stabilized case and bushing, chrome-plated brass with internal, O-ring seal standard actuator and stainless steel switch support retainer with tin-plated brass or steel switch support.
- Mounting bracket solders directly to PCB
- Plain bush for easy front panel removal
- Process sealed to withstand machine soldering and pressure wash cleaning
- 1000MΩ Minimum insulation resistance
- 1000VRMS Dielectric strength at sea level
- 30000-cycle Make-and-break mechanical life
- -30 to 85°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Docs (1)
Alternatives for 1AS1T2B4M6RE
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365007
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00265
