MCUSD18A40S09RS-30C
Ultrasonic Sensor, Transceiver, 18 mm Diameter, 40 kHz, -75 dB, Aluminium, Silver, -40 °C to 85 °C

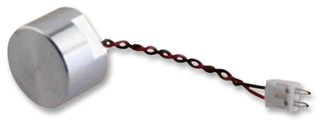

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCUSD18A40S09RS-30CCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2362680 |
| Your Part Number | |
| Technical Datasheet |
104 In Stock
Need more?
104 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$52.510 |
| 10+ | HK$45.910 |
| 25+ | HK$42.030 |
| 50+ | HK$36.060 |
| 100+ | HK$25.680 |
| 500+ | HK$25.370 |
Price for:Each
Minimum: 1
Multiple: 1
HK$52.51
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCUSD18A40S09RS-30CCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2362680 |
| Technical Datasheet | |
| Sensing Range Min | - |
| Sensing Range Max | - |
| Beam Angle | 110° |
| Switching Frequency | 40kHz |
| External Diameter | 18mm |
| Sensitivity (dB) | -75dB |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The MCUSD18A40S09RS-30C is a 18mm 40kHz Metal Transceiver features compact and lightweight, low power consumption, high sensitivity and sound pressure. This specification covers the waterproof type ultrasonic ceramic transducer which is used for ultrasonic ranging and parking sensor of automobile.
- Waterproof and dual use
- High reliability
- Aluminium housing
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Sensing & Instrumentation, Automotive
Technical Specifications
| Sensing Range Min | - |
|---|---|
| Beam Angle | 110° |
| External Diameter | 18mm |
| Operating Temperature Min | -40°C |
| Product Range | - |
| Sensing Range Max | - |
|---|---|
| Switching Frequency | 40kHz |
| Sensitivity (dB) | -75dB |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (17-Jan-2023) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85322400 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .006653 |
