| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-FTE-3C-A-V-T/RCopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 4266813 |
| Product Range | MP Detector Switches |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$9.630 |
| 15+ | HK$7.280 |
| 100+ | HK$6.710 |
| 500+ | HK$6.360 |
| 1000+ | HK$5.990 |
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-FTE-3C-A-V-T/RCopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 4266813 |
| Product Range | MP Detector Switches |
| Technical Datasheet | |
| Product Range | MP Detector Switches |
| Contact Configuration | SPST-NC |
| Switch Terminals | SMD |
| Contact Current Max | 1mA |
| Contact Voltage DC Nom | 5V |
| External Height | 2mm |
| External Width | 4mm |
| External Depth | 5.55mm |
| SVHC | To Be Advised |
Product Overview

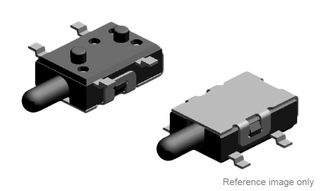

MP-FTE-3C-A-V-T/R is a horizontal-type detector switch used to detect the presence or absence of an object or target within its sensing range. Applications include the detection of car audio mechanisms, smoke detectors and notebooks. This detector switch plays a crucial role in automation and control systems by providing reliable and accurate object detection capabilities. They enable the automation of processes, improve efficiency, enhance safety, and enable innovative applications across diverse industries.
- Ultra-low profile with 2mm
- Sharp detection feeling
- 1mA, 5VDC contact rating
- 1ohm maximum contact resistance, 100Mohm minimum insulation resistance at 100VDC
- 105gf maximum operating force, 2mm travel
- 100000 cycles operating life, -10°C to +60°C operating temperature
- Stainless steel cover and contact
- High-temp thermoplastic PA9T base and stem
- Phosphor bronze terminal
Applications
Industrial, Power Supplies, Automation & Process Control, Computer Peripherals
Contents
x1 Detector switch.
Notes
Versatile and cost-effective solution for a variety of applications.
Technical Specifications
| Product Range | MP Detector Switches |
|---|---|
| Switch Terminals | SMD |
| Contact Voltage DC Nom | 5V |
| External Width | 4mm |
| SVHC | To Be Advised |
| Contact Configuration | SPST-NC |
|---|---|
| Contact Current Max | 1mA |
| External Height | 2mm |
| External Depth | 5.55mm |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Vietnam Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365007 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .27 |
