2-Channel Arbitrary Waveform Generator, 80MHz

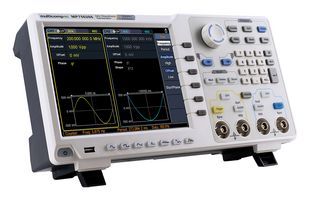

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Product Range
Multicomp Pro Waveform Generators
Technical Datasheet:
MP750288   Datasheet
See all Technical Docs

Product Range Selector (Multicomp Pro Waveform Generators)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Arbitrary, Function

2 Channel

Multicomp Pro Waveform Generators


3FSK, 4FSK, AM, ASK, BPSK, Burst, FM, FSK, OSK, PM, PSK, PWM, Sweep

1 Year


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

CAD Downloads


Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The MP750288 from Multicomp Pro is an 80MHz, 2-channel arbitrary waveform generator, featuring max 1.25GS/s sample rates, 1?Hz frequency resolution, 14-bits vertical resolution and max 1M arbitrary waveform length.
  • 8" (800 x 600 pixels) multi-touch screen LCD display
  • High-accuracy frequency counter integrated, supporting range of 100 to 200MHz and 7-digit resolution
  • Frequency counter function: period, +width, -width, +duty, -duty
  • 80MHz max frequency output
  • Comprehensive waveform output: 6 basic waveforms and 152 built-in arbitrary waveforms
  • Modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep and Burst
  • SCPI and LabVIEW supported
  • USB host, USB device and LAN communication interfaces
  • Dimensions: 340 x 177 x 90mm (WxHxD)
  • Device weight: 2.5kg


Arbitrary function generator, EU & UK mains cords, CD-ROM, Quick-guide, USB cable and Q9 cable.


Standard certified calibration service available for this product. Visit our calibration page for more details.
