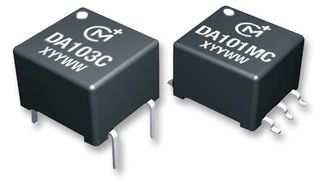

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MURATA POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | DA102MCCopy |
| Order Code | 1362402 |
| Product Range | DA Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | MURATA POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | DA102MCCopy |
| Order Code | 1362402 |
| Product Range | DA Series |
| Technical Datasheet | |
| Turns Ratio | 1:1 |
| Primary Impedance | - |
| Secondary Impedance | - |
| Secondary Power | - |
| Frequency Max | - |
| Isolation Voltage | 2kV |
| Transformer Applications | Digital Audio Data Transmission |
| DC Resistance Primary | - |
| DC Resistance Secondary | - |
| Transformer Mounting | Surface Mount |
| Transformer Terminals | Solder |
| Frequency Min | - |
| Product Range | DA Series |
Product Overview
The DA102MC is an Audio Transformer used for digital audio data transmission. This transformer is designed to improve the balance of transmitter and receiver circuitry in hi-fi equipment, video games and other applications requiring high-performance digital audio transmission. Compliant with AES/EBU recommendations for the digital audio interface, offering optimized shunt capacitance between primary and secondary windings. Capable of operating over the audio data rate frequency range, providing isolation from 50 to 60Hz noise.
- Compatible with leading chip sets
- 2kVrms Isolation
- Industry-standard pinout
- Surface mount option
- UL94V-0 package materials
- Low profile
- Suitable for both 75 & 110Ω circuits
- Toroidal construction
- Compliant with AES/EBU standards
- Fully encapsulated
Applications
Audio
Technical Specifications
| Turns Ratio | 1:1 |
|---|---|
| Secondary Impedance | - |
| Frequency Max | - |
| Transformer Applications | Digital Audio Data Transmission |
| DC Resistance Secondary | - |
| Transformer Terminals | Solder |
| Product Range | DA Series |
| Primary Impedance | - |
|---|---|
| Secondary Power | - |
| Isolation Voltage | 2kV |
| DC Resistance Primary | - |
| Transformer Mounting | Surface Mount |
| Frequency Min | - |
