DMS-40LCD-0/1-5-C
Digital Panel Meter, LCD, 4-1/2 Digits, DC Voltage, -200mV to +200mV, -2V to +2V

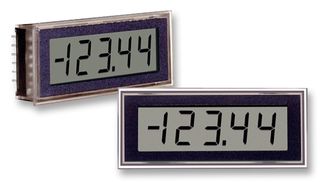

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoDMS-40LCD-0/1-5-C
Order Code1339303
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoDMS-40LCD-0/1-5-C
Order Code1339303
Technical Datasheet
Product Overview
The DMS-40LCD-0/1-5-C is a 4.5-digit LCD Miniature Digital Panel Meter with ±200mV/±2V input and single 5V supply. This miniature digital voltmeter combines an advanced, auto zeroing A/D converter, a precision reference circuit and a large (10.2mm high), easy-to-read LCD display in a single, fully encapsulated, 12-pin DIP package. This model incorporates a built-in bezel and is easily mounted in either panels or PC boards.
- Configurable DPM
- Daylight readable
- DC powered
- Polycarbonate case
- Scientific-grade accuracy, ±2 counts
- User-selectable decimal point placement
- Low-battery BAT annunciator
Applications
Industrial, Metering
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03
