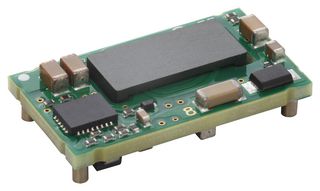

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MURATA POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | MYBSP00502ABFCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | EACH 3501744 EACH 3501744RL |
| Product Range | MYBSP Series |
| Your Part Number | |
| Technical Datasheet |
921 In Stock
Need more?
921 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$94.290 |
| 5+ | HK$90.750 |
| 10+ | HK$89.360 |
| 50+ | HK$86.540 |
Price for:Each
Minimum: 1
Multiple: 1
HK$94.29
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MURATA POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | MYBSP00502ABFCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | EACH 3501744 EACH 3501744RL |
| Product Range | MYBSP Series |
| Technical Datasheet | |
| Power Supply Applications | - |
| DC / DC Converter Type | - |
| Input Ratio | 2:1 |
| Output Power Max | 10W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 2A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Regulation | - |
| Isolation Voltage | 2.25kV |
| Input Voltage DC Nom | 48V |
| DC / DC Converter Output Type | Fixed |
| Width | 26mm |
| Height | 6.2mm |
| Depth | 14.8mm |
| Input Voltage DC Min | 37V |
| Input Voltage DC Max | 57V |
| Product Range | MYBSP Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- Isolated DC-DC converter for PoE PD
- Support IEEE802.3af class0
- Surface mount module
- 2250VDC input-output isolation
- Operating temperature range from -40 to +85°C
- Module has self-protection features
- Include input undervoltage lockout and output current limit
- 80% efficiency (typ)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Power Supply Applications | - |
|---|---|
| Input Ratio | 2:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 2A |
| Output Current - Output 2 | - |
| Isolation Voltage | 2.25kV |
| DC / DC Converter Output Type | Fixed |
| Height | 6.2mm |
| Input Voltage DC Min | 37V |
| Product Range | MYBSP Series |
| DC / DC Converter Type | - |
|---|---|
| Output Power Max | 10W |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | - |
| Output Regulation | - |
| Input Voltage DC Nom | 48V |
| Width | 26mm |
| Depth | 14.8mm |
| Input Voltage DC Max | 57V |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0047 |
