CHS-02TB
DIP / SIP Switch, 2 Circuits, Slide, Surface Mount, SPST, 6 V, 100 mA

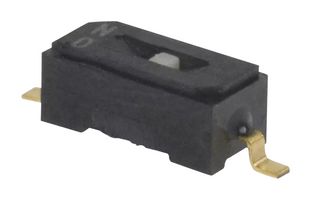

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | NIDEC COMPONENTS |
|---|---|
| Manufacturer Part No | CHS-02TBCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2854728 |
| Product Range | CHS Series |
| Your Part Number | |
| Technical Datasheet |
10 In Stock
1,000 more incoming. You can reserve stock now
10 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$18.220 |
| 10+ | HK$15.370 |
| 25+ | HK$14.270 |
| 50+ | HK$13.490 |
| 100+ | HK$12.700 |
Price for:Each
Minimum: 1
Multiple: 1
HK$18.22
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NIDEC COMPONENTS |
|---|---|
| Manufacturer Part No | CHS-02TBCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2854728 |
| Product Range | CHS Series |
| Technical Datasheet | |
| No. of Circuits | 2Circuits |
| Switch Actuator Style | Slide |
| Switch Mounting | Surface Mount |
| Contact Configuration | SPST |
| Contact Voltage DC Max | 6V |
| Contact Current DC Max | 100mA |
| Product Range | CHS Series |
| Switch Type | DIP |
Product Overview
Highly reliable dip slide half-pitch switches. They are ideal for professional industrial applications where high level of contact reliability is essential.
Applications
Industrial, Electrical, Electronics Design
Technical Specifications
| No. of Circuits | 2Circuits |
|---|---|
| Switch Mounting | Surface Mount |
| Contact Voltage DC Max | 6V |
| Product Range | CHS Series |
| Switch Actuator Style | Slide |
|---|---|
| Contact Configuration | SPST |
| Contact Current DC Max | 100mA |
| Switch Type | DIP |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00008 |
