FRDMPT2001EVM

FREEDOM EXP BOARD, PROG SOLENOID CTRL

NXP FRDMPT2001EVM

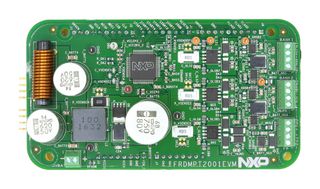

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
FRDMPT2001EVM
Order Code:
3378943
Technical Datasheet:
FRDMPT2001EVM   Datasheet
See all Technical Docs

Product Overview

PT2001 evaluation board serves as the interface between the PT2001 and the components it controls. The board contains a commercial version of the PT2001 and connectors for up to four fuel injectors, two fuel pumps and a DC/DC converter.
  • PT2001 programmable gate driver for solenoid control
  • Power conditioning circuitry
  • 12V to 36V VSUPP power to the PT2001
  • PT2001 direct injection pre-driver integrated circuit
  • External MOSFETs

Contents

Assembled and tested FRDMPT2001EVM board mounted to an FRDM-KL25Z board in an anti-static bag, S32K144EVB-Q100 in case a higher performance MCU is required, Quick start guide, Warranty card.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
NXP

:
PT2001

:
Motor Driver

:
Programmable Solenoid Controller

:
Freedom Expansion Board- PT2001, S32K144EVB-Q100 MCU, Quick Start Guide, Warranty Card

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

1 In stock Need more?

1 available for 3 - 4 business days delivery

HK$1,512.82

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ HK$1,512.82
