RDGD3160I3PH5EVB

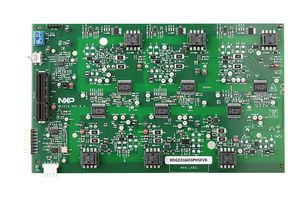

Evaluation Board, GD3160, IGBT/SiC Gate Driver, 3-Phase EV Motor Control
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | RDGD3160I3PH5EVBCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3868958 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$9,430.320 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | RDGD3160I3PH5EVBCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3868958 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| Silicon Core Number | GD3160 |
| Kit Application Type | IGBT/SiC Gate Driver |
| Application Sub Type | 3-Phase EV Motor Control |
| Kit Contents | Reference Design Board GD3160, PCIe Cable (S32SDEV-CON18), Anti-Static Bag, Quick Start Guide |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
Three-phase inverter reference design and evaluation board populated with six GD3160 gate drivers for IGBT/SiC MOSFET devices. This board supports SPI daisy chain communication for programming and communication with three high-side gate drivers and three low-side gate drivers independently and comes with fault management and supporting circuitry. Evaluation kit is designed to connect to a compatible HybridPACK™ Drive SIC/IGBT module or onsemi VE-trac™ IGBT module for full three phase inverter applications development.
- 3 phase reference design for HP drive featuring GD3160
- GD3160 advanced single channel gate driver for IGBT and SiC MOSFETs
- Integrated galvanic signal isolation (up to 8KV)
- SPI interface for safety monitoring, configuration and diagnostic reporting
- Fail-safe state management from LV and HV domain for user-selectable safe state
- Configurable desaturation and current sense optimized for protecting SiC and IGBTs
- Integrated ADC for monitoring parameters from HV domain
- Certified compliant with ISO 26262, supporting ASIL D level functional safety
Contents
Three-phase inverter reference design and evaluation board, Quick start guide.
