                      RDGD3162I3PH5EVB

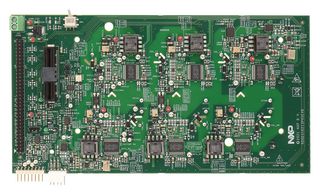

                      Evaluation Board, 3-Phase EV Motor Control, IGBT/SiC Gate Driver, GD3162, ARM, Cortex-M0+

                      NXP RDGD3162I3PH5EVB
                      NXP RDGD3162I3PH5EVB
                      NXP RDGD3162I3PH5EVB
                      NXP RDGD3162I3PH5EVB
                      NXP RDGD3162I3PH5EVB
                      NXP RDGD3162I3PH5EVB
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerNXP
                      Manufacturer Part NoRDGD3162I3PH5EVB
                      Order Code4146868
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 16 week(s)

                      Notify me when back in stock

                      QuantityPrice
                      1+HK$6,865.740
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      HK$6,865.74
                      Add Part No. / Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerNXP
                      Manufacturer Part NoRDGD3162I3PH5EVB
                      Order Code4146868
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerNXP
                      Silicon Core NumberGD3162
                      Kit Application TypeIGBT/SiC Gate Driver
                      Application Sub Type3-Phase EV Motor Control
                      Core ArchitectureARM
                      Core Sub-ArchitectureCortex-M0+
                      Silicon Family Name-
                      Kit ContentsReference Design Board GD3162, MCU Board with Micro USB Cable, Anti-Static Bag, Quick Start Guide
                      Product Range-
                      SVHCNo SVHC (27-Jun-2024)

                      Product Overview

                      RDGD3162I3PH5EVB is a three-phase inverter reference design and evaluation board populated with six GD3162 single channel IGBT/SiC MOSFET gate drive devices. The evaluation board is designed to connect to a compatible HybridPACK drive IGBT or SiC module for full three-phase inverter applications development and testing. Included with board is KITGD316xTREVB MCU/translator for communication and testing using Flex GUI software.

                      • MPC5775B and MPC5775E microcontrollers for Battery Management Systems (BMS) & inverter applications
                      • Ultra-reliable MPC5777C MCU for automotive and industrial engine management
                      • Evaluation board designed for and populated with GD3162 gate drivers and protection circuitry
                      • Capability to perform double pulse and short-circuit tests on phase U using KITGD316xTREVB & FlexGUI
                      • Capability to connect to HybridPACK drive type SiC specific modules
                      • Daisy chain SPI communication × 3 - 2 channel or × 6 - 1 channel
                      • Variable flyback VCC power supply with GND reference and variable negative VEE supply
                      • Easy access power, ground, and signal test points
                      • 2 × 32 PCIe socket for interfacing MCU control (MPC5775B/E-EVB, MPC5777C-DEVB, or MPC57744P)
                      • Optional connection for DC bus voltage and current monitoring, phase current feedback connections

                      Contents

                      Assembled and tested RDGD3162I3PH5EVB (three-phase inverter populated with 5.0 V compatible gate driver devices) board in an anti-static bag, KITGD316XTREVB 3.3V to 5.0 V translator with FRDM-KL25Z MCU board with micro USB cable, Quick Start Guide.
