| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | HPC-CH-SCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3410302 |
| Product Range | HPC Series |
| Your Part Number | |
| Technical Datasheet |
7 In Stock
Need more?
7 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$2,519.520 |
Price for:Pack of 20
Minimum: 1
Multiple: 1
HK$2,519.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | HPC-CH-SCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3410302 |
| Product Range | HPC Series |
| Technical Datasheet | |
| Product Range | HPC Series |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 24AWG |
| For Use With | Omega MTC Series Circular Connectors |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

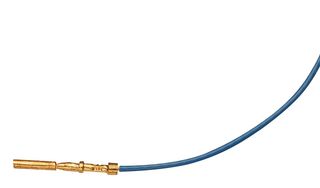

Push-in crimp style contacts are manufactured from thermocouple alloy materials and are generically color-coded for easy identification. Contacts are crimp terminated outside the connector assembly and inserted into the appropriate cavity by means of an insertion tool. They can be readily removed from the connector assembly using a special removal tool.
- Sockets (female) chromega (+)
Contents
Packages of 20 pieces.
Technical Specifications
| Product Range | HPC Series |
|---|---|
| Contact Termination Type | Crimp |
| Wire Size AWG Min | 24AWG |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Contact Gender | Socket |
|---|---|
| Wire Size AWG Max | 20AWG |
| For Use With | Omega MTC Series Circular Connectors |
| Contact Material | Copper |
Technical Docs (1)
Alternatives for HPC-CH-S
8 Products Found
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002268 |
