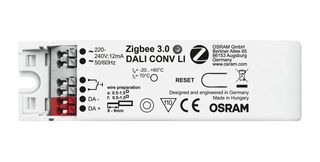

ZIGBEE-3.0-DALI-CONV-LI

The Osram universal Zigbee 3.0 DALI CONV LI converter now allows you integrate DALI luminaires into Zigbee-based control systems. The converter also supports the dimming of DALI-based luminaires without the need of bus wiring. Compared to phase-cut dimmers, flicker effects are reduced to a minimum. The Zigbee 3.0 DALI CONV LI can control up to eight DALI LED drivers in broadcast mode and has a radio range of 15 m (no external antenna required). The converter supports DT8 tuneable white drivers. DALI devices connected are automatically detected. The converter features a bidirectional DALI interface and a Zigbee 3.0 interface. Thanks to the Zigbee 3.0 standard the device is also compatible with ZHA and ZLL control units. The integrated DALI power supply provides up to 24 mA.

• Integrated Zigbee transceiver module
• DALI interface for addressed or broadcast operation
• Outputs with electronical reversible overtemperature, short circuit, overload protection
• Support standard DALI and DALI DT8 (tunable white) control gears
• Automatic operating mode detection after each restart
• Zigbee 3.0 certified including enhanced security standard
• Synchronous switching and dimming of up to 8 DALI control gears
• Reliable dimming through digital control of the drivers
