ELC10D561E
Choke, ELC-10D Series, 560 µH, 680 mA, 0.56 ohm, ± 10%

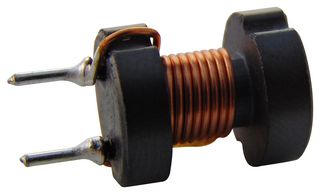

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANASONIC
Manufacturer Part NoELC10D561E
Order Code1308462
Product RangeELC-10D Series
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerPANASONIC
Manufacturer Part NoELC10D561E
Order Code1308462
Product RangeELC-10D Series
Technical Datasheet
Product RangeELC-10D Series
Inductance560µH
Inductor ConstructionUnshielded
RMS Current (Irms)680mA
Saturation Current (Isat)-
DC Resistance Max0.56ohm
Inductance Tolerance± 10%
SVHCNo SVHC (23-Jan-2024)
Technical Specifications
Product Range
ELC-10D Series
Inductor Construction
Unshielded
Saturation Current (Isat)
-
Inductance Tolerance
± 10%
Inductance
560µH
RMS Current (Irms)
680mA
DC Resistance Max
0.56ohm
SVHC
No SVHC (23-Jan-2024)
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Singapore
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Singapore
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.031751
