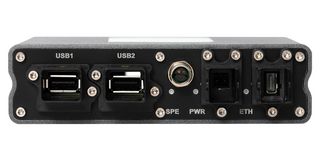

PRN.000.025.00010

PRN.000.025.00010 is a single core, 100Base-TX, 100BASE-T1, IP20 periMICA modular edge computer for field-level IOT application, even in rough environments. The periMICA Edge Computer can be configured with the following hardware modules: Processor modules (P), Supply modules (S), Function modules (F). It hosts virtualized applications and provides a runtime for lightweight Linux-containers. Just as you would in the cloud, the periMlCA allows you to set up applications locally. So, migration of applications between the field and your IT infrastructure becomes easy. A periMICA is the Perfect tool for gathering and preprocessing data: Straight from the field-level, where sensors and actuators are networked by the Perinet Smart Components.

• CortexA8, ARMv7 1GHz single core, 1GB RAM, 4GB eMMC
• Brand labelling supported, user-friendly web-based UI and IOT native: IPv6, Secure by design (mTLS)
• Various Ethernet options: Fast Ethernet (IOOBASE-TX) and single Pair Ethernet (IOOBASE-TI)
• RESTfuI API, open source software and customizable hard- & software
• Containerized S/W (LXC): MQTT broker, Dashboard editor, PK12GO, user-friendly security
• Containerized S/W (LXC): MODBUS-TCP bridge, JTAG debug container
• Aluminium housing material
• LEDs to indicate the operating status
• Operation temperature range from -25 to +75°C and relative humidity is 5 to 95% non-condensing
• Dimension is 132mm x 35mm x 86mm
