1851083

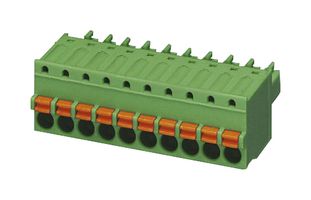

Pluggable Terminal Block, 3.81 mm, 6 Ways, 26 AWG, 16 AWG, 1.5 mm², Push In
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1851083Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2776487 |
| Product Range | MINI COMBICON |
| Also Known As | 1851083 (FK-MCP 1,5/ 6-ST-3,81) |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$89.840 |
| 10+ | HK$72.970 |
| 100+ | HK$71.520 |
| 250+ | HK$70.060 |
| 500+ | HK$68.600 |
Price for:Each
Minimum: 1
Multiple: 1
HK$89.84
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1851083Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2776487 |
| Product Range | MINI COMBICON |
| Also Known As | 1851083 (FK-MCP 1,5/ 6-ST-3,81) |
| Technical Datasheet | |
| Pitch Spacing | 3.81mm |
| No. of Positions | 6Ways |
| Wire Size AWG Min | 26AWG |
| Wire Size (AWG) | 26AWG to 16AWG |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1.5mm² |
| Wire Connection Method | Push In |
| Rated Current | 8A |
| Rated Voltage | 300V |
| Product Range | MINI COMBICON |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The FK-MCP 1,5/ 6-ST-3,81 from Phoenix Contact is a 6 position pluggable terminal block with push-in spring connection. This terminal block comes with 3.81mm pitch spacing and suitable for wire size ranging from 26AWG to 16AWG.
- Green colour PA insulation, tin contact surface
- 8A nominal current, 160V rated voltage (III/2)
- Operation and conductor connection from one direction enable integration into front of device
- Flammability rating according to UL94 V0
- Time saving push-in connection, tools not required
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
- Defined contact force ensures that contact remains stable over the long term
- CSA, VDE, IECEE CB, EAC, CCA and cULus recognized
- Dimension of terminal block is 21mm x 23.65mm x 12.4mm (L x W x H)
Applications
Industrial
Technical Specifications
| Pitch Spacing | 3.81mm |
|---|---|
| Wire Size AWG Min | 26AWG |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Push In |
| Rated Voltage | 300V |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 6Ways |
|---|---|
| Wire Size (AWG) | 26AWG to 16AWG |
| Conductor Area CSA | 1.5mm² |
| Rated Current | 8A |
| Product Range | MINI COMBICON |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .054431 |
