1966114
Pluggable Terminal Block, 3.5 mm, 4 Ways, 24 AWG, 16 AWG, 1.5 mm², Push In

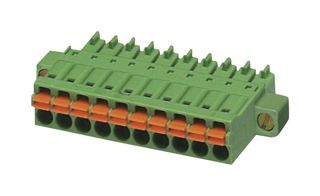

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1966114Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2776493 |
| Product Range | MINI COMBICON |
| Also Known As | 1966114, FMC 1,5/ 4-STF-3,5 |
| Your Part Number | |
| Technical Datasheet |
16 In Stock
200 more incoming. You can reserve stock now
16 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$34.720 |
| 10+ | HK$28.240 |
| 100+ | HK$27.740 |
| 250+ | HK$27.240 |
| 500+ | HK$26.740 |
Price for:Each
Minimum: 1
Multiple: 1
HK$34.72
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1966114Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2776493 |
| Product Range | MINI COMBICON |
| Also Known As | 1966114, FMC 1,5/ 4-STF-3,5 |
| Technical Datasheet | |
| Pitch Spacing | 3.5mm |
| No. of Positions | 4Ways |
| Wire Size AWG Min | 24AWG |
| Wire Size (AWG) | 24AWG to 16AWG |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1.5mm² |
| Wire Connection Method | Push In |
| Rated Current | 8A |
| Rated Voltage | 150V |
| Product Range | MINI COMBICON |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The FMC 1,5/ 4-STF-3,5 from Phoenix Contact is a 4 position pluggable terminal block with push-in spring connection. This terminal block comes with 3.5mm pitch spacing and suitable for wire size ranging from 24AWG to 16AWG.
- Green colour PA insulation, tin contact surface
- 8A nominal current, 160V rated voltage (III/2)
- Operation and conductor connection from one direction enable integration into front of device
- Flammability rating according to UL94 V0
- Time saving push-in connection, tools not required
- Intuitive use through colour coded actuation lever
- Screwable flange for superior mechanical stability
- Defined contact force ensures that contact remains stable over the long term
- VDE, IECEE CB, EAC and cULus recognized
- Dimension of terminal block is 22.9mm x 24.3mm x 7.8mm (L x W x H)
Applications
Industrial
Technical Specifications
| Pitch Spacing | 3.5mm |
|---|---|
| Wire Size AWG Min | 24AWG |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Push In |
| Rated Voltage | 150V |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 4Ways |
|---|---|
| Wire Size (AWG) | 24AWG to 16AWG |
| Conductor Area CSA | 1.5mm² |
| Rated Current | 8A |
| Product Range | MINI COMBICON |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00327 |
