1840489

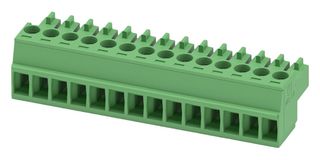

Pluggable Terminal Block, 3.5 mm, 14 Ways, 28 AWG, 16 AWG, 1.5 mm², Screw
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1840489Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2766155 |
| Product Range | MINI COMBICON |
| Also Known As | 1840489, MC 1,5/14-ST-3,5 |
| Your Part Number | |
| Technical Datasheet |
127 In Stock
100 more incoming. You can reserve stock now
127 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$116.730 |
| 10+ | HK$108.480 |
| 25+ | HK$106.320 |
| 100+ | HK$104.150 |
| 250+ | HK$101.980 |
Price for:Each
Minimum: 1
Multiple: 1
HK$116.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1840489Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2766155 |
| Product Range | MINI COMBICON |
| Also Known As | 1840489, MC 1,5/14-ST-3,5 |
| Technical Datasheet | |
| Pitch Spacing | 3.5mm |
| No. of Positions | 14Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size (AWG) | 28AWG to 16AWG |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 8A |
| Rated Voltage | 160V |
| Product Range | MINI COMBICON |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
1840489 is a PCB connector. It is approved by CSA, VDE, IECEE CB scheme, CCA, cULus recognized, EAC.
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Screw connection with tension sleeve connection method
- 14 positions, 1.5mm² conductor cross section (solid max)
- Green colour, 3.5mm pitch
- 8A nominal current, 160V nominal voltage
- Cu alloy contact material
- 16.1mm length, 49mm width, 11.1 mm height
- Ambient temperature (operation) from -40°C to 100°C
Technical Specifications
| Pitch Spacing | 3.5mm |
|---|---|
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 160V |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 14Ways |
|---|---|
| Wire Size (AWG) | 28AWG to 16AWG |
| Conductor Area CSA | 1.5mm² |
| Rated Current | 8A |
| Product Range | MINI COMBICON |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0098 |
