5405
Connector Adapter, Banana, 2 Ways, Plug, Binding Post, 2 Ways, Jack
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$340.540 |
Product Overview

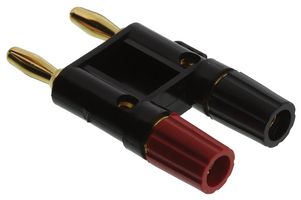

The 5405 is a Double Banana Plug with binding posts and ABS insulator. Binding post is made of brass with gold-plated finish and polycarbonate insulator knurl thumb knob. Banana plug is made of brass with gold-plated finish and gold-plated beryllium copper contact for tarnish resistance and long insertion life. Wires, spade lugs and pin tip plugs can be attached by means of the insulated knurl thumb knob. It converts double banana jack test instruments to binding posts for test versatility.
- Banana plugs can be stacked vertically or horizontally
- Insulated knurl thumb knob is captive to prevent misplacement
- 2500VDC Operating voltage
- 15A Current rating
- 50°C Operating temperature
Applications
RF Communications
Notes
Exclusive 5% discount (already applied) on selected items from the Pomona Electronics range, valid until 31/12/2026. Terms and conditions apply.
Technical Specifications
Banana
Plug
2Ways
-
2Ways
Binding Post
Jack
No SVHC (15-Jun-2015)
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
RoHS
Product Compliance Certificate
