RDK-747
Reference Design Board, INN3679C-H606, Industrial Power Supply Unit

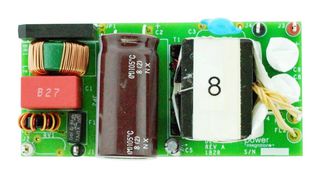

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-747
Order Code3580560
Your Part Number
Technical Datasheet
5 In Stock
Need more?
5 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$818.000 |
Price for:Each
Minimum: 1
Multiple: 1
HK$818.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-747
Order Code3580560
Technical Datasheet
Silicon ManufacturerPower Integrations
Silicon Core NumberINN3679C-H606
Kit Application TypePower Management
Application Sub TypeIndustrial Power Supply Unit
Core Architecture-
Core Sub-Architecture-
Silicon Family Name-
Kit ContentsReference Design Board INN3679C-H606
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
RDK-747 is a 65W charger for industrial power supply applications. It is designed for 90V AC to 265V AC input, 20V/3.25A output using InnoSwitch3-EP (INN3679C-H606) featuring PowiGaN™ technology. The design showcases the high power density, very low component count and efficiency possible due to the high level of integration of the InnoSwitch3-EP controller with exceptional PowiGaN efficiency.
- 90V AC to 265V AC input, 20V / 3.25A output
- InnoSwitch3-EP is industry first AC/DC IC with isolated, safety rated integrated feedback
- All the benefits of secondary-side control with simplicity of primary-side regulation
- Meets DOE6 and CoC Tier 2 V5 2016
- Less than 40mW no-load input power
- Primary sensed overvoltage protection
- Very low component count (43 components)
- Greater than 6db margin on conducted EMI
- Very high average efficiency (92.5% at 115V AC and 230V AC)
- Very high full-load efficiency (92% at 115V AC and 93.5% at 230V AC)
