Raspberry Pi IQaudio DAC Pro Board, PCM5242, Highest-Fidelity, Audio HAT 40-Pin GPIO Header
Image is for illustrative purposes only. Please refer to product description.
20 In Stock
Need more?
20 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$210.600 |
Price for:Each
Minimum: 1
Multiple: 1
HK$210.60
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRASPBERRY-PI
Manufacturer Part NoSC0369
Order Code4527518
Technical Datasheet
Add-On-Card & Module TypeRaspberry Pi Highest-Fidelity Audio DAC PRO HAT
For Use WithRaspberry Pi Computer w/40-Pin GPIO Header
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview

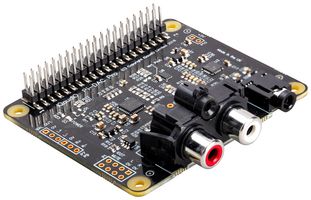

SC0369 is a Raspberry Pi DAC Pro highest-fidelity audio HAT and is compatible with any Raspberry Pi computer. With the Texas Instruments PCM5242, the 24bit 192KHz DAC Pro provides an outstanding signal-to-noise ratio (SNR) and supports balanced/differential output in parallel to phono/RCA line-level output. It also includes a dedicated headphone amplifier.
- 58mm x 65mm form factor
- Supplied by Raspberry Pi through the 40-pin GPIO header (no external power source required)
- Power LED
- Analogue out (0–2V RMS via P7)
- Dedicated headphone amplifier, output via 3.5mm
- Panel-mounted barrel socket
- Panel-mounted stereo phono (RCA) socket output
- HAT EEPROM write-enabled
- Operating temperature range from 0°C to 50°C
Technical Specifications
Add-On-Card & Module Type
Raspberry Pi Highest-Fidelity Audio DAC PRO HAT
Product Range
-
For Use With
Raspberry Pi Computer w/40-Pin GPIO Header
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.039
