TMS-SCE-1/2-2.0-9
Wire Marker, TMS SCE Thin Wall, Heat Shrinkable Sleeve, PO (Polyolefin), White, 12.7mm x 50mm

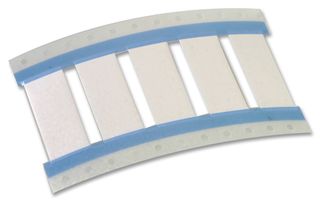

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | TMS-SCE-1/2-2.0-9Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1146706 |
| Product Range | TMS-SCE Series |
| Your Part Number | |
| Technical Datasheet |
25 In Stock
2,500 more incoming. You can reserve stock now
25 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$3,130.990 |
| 5+ | HK$2,739.610 |
| 10+ | HK$2,269.970 |
| 25+ | HK$2,035.140 |
| 50+ | HK$1,878.590 |
| 100+ | HK$1,774.090 |
Price for:Pack of 250
Minimum: 1
Multiple: 1
HK$3,130.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | TMS-SCE-1/2-2.0-9Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1146706 |
| Product Range | TMS-SCE Series |
| Technical Datasheet | |
| Marker Type | Heat Shrinkable Sleeve |
| Legend | - |
| Marker Material | PO (Polyolefin) |
| Marker Colour | White |
| Marker Dimensions | 12.7mm x 50mm |
| I.D. Max | 10.79mm |
| I.D. Min | 4.64mm |
| Shrink Ratio | 3:1 |
| Product Range | TMS-SCE Series |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The TMS-SCE series military-grade Heat Shrinkable Wire ID Marker Sleeve designed to meet the wire and cable marking needs of manufacturers with high performance requirements. It is made from durable, flame-retardant, radiation cross-linked heat-shrinkable polyolefin. TMS-SCE marker sleeves can be used in a wide variety of applications. The marker sleeve is designed to be printed by computer-driven dot matrix or thermal transfer printers, providing several advantages in terms of reduced errors, cycle time and cost.
- Permanent identification sleeves
- Computer-printable
- Quick recovery for heat sensitive areas
- Military specification material and print performance
- VW all flame tubing test rated
- Lightweight for aerospace applications
Applications
Aerospace, Defence, Military
Technical Specifications
| Marker Type | Heat Shrinkable Sleeve |
|---|---|
| Marker Material | PO (Polyolefin) |
| Marker Dimensions | 12.7mm x 50mm |
| I.D. Min | 4.64mm |
| Product Range | TMS-SCE Series |
| Legend | - |
|---|---|
| Marker Colour | White |
| I.D. Max | 10.79mm |
| Shrink Ratio | 3:1 |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 39269097 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1 |
