RECOM POWER R-REF01-HB

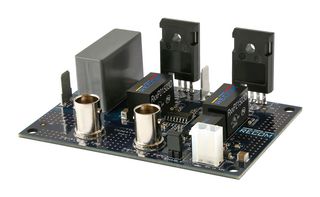

REF DESIGN BRD, IGBT/MOSFET GATE DRIVER

RECOM POWER R-REF01-HB
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
R-REF01-HB
Order Code:
3255705
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
R-REF01-HB   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

R-REF01-HB is a half-bridge gate-drive power supply reference design (RD). It consists of a half-bridge suitable for voltages up to 1KV and a fully-isolated driver stage with isolated power supplies for the low-side and the high-side switching transistors. It is suitable for single gate/drive supply voltages as low as +4V as well as dual gate drive supply voltages as high as +20V / -5V (30V max) with no maximum duty cycle limitations. Two R12P22005D, R12P21503D, R12P21509D and R12P06S DC/DC modules each are included in the R-REF01-HB design kit.
  • Optimized for very high switching speed
  • 2.5KV continuous input to output isolation
  • High gate-drive currents (up to 10A source and sink)
  • TTL-compatible signal input
  • Single 15V to 42V supply
  • Shoot-through protection
  • Separate input for low and high-side switch for use with different topologies
  • Qualified with 65KV/µs at Vcommon mode =1KV
  • ESD sensitive
