BD14222G-EVK-001
Evaluation Board, BD14222G-CTR, Current Sense Amplifier
| Manufacturer | ROHM |
|---|---|
| Manufacturer Part No | BD14222G-EVK-001Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4721193 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$682.000 |
Product Information
| Manufacturer | ROHM |
|---|---|
| Manufacturer Part No | BD14222G-EVK-001Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4721193 |
| Technical Datasheet | |
| Silicon Manufacturer | Rohm Semiconductor |
| Silicon Core Number | BD14222G-CTR |
| Kit Application Type | Amplifier |
| Application Sub Type | Current Sense Amplifier |
| Kit Contents | Evaluation Board BD14222G-CTR |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

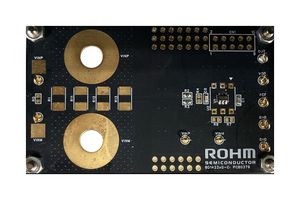

BD14222G-EVK-001 is an evaluation board for BD14222G-LA current sense amplifier. The BD14222G-C is a current sense amplifier series. This device operates from a single 2.7V to 5.5V power supply. It has wide common mode voltage range from -14V to +40V, outputs analogue voltage. The gain is 100 V/V. The matched gain resistor minimizes gain error and offset voltage. In addition, the low input bias current is 1μA that reduces the offset on the path to shunt resistor. The BD14222G-C key features are wide common mode voltage range, high accuracy, low offset voltage, low input bias current.
- Board size is 74mm x 44mm x 1.6mm
- 2 layers
- FR-4 (~125°C) material
- 2oz (70μm) copper thickness
Technical Specifications
| Silicon Manufacturer | Rohm Semiconductor |
|---|---|
| Kit Application Type | Amplifier |
| Kit Contents | Evaluation Board BD14222G-CTR |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | BD14222G-CTR |
|---|---|
| Application Sub Type | Current Sense Amplifier |
| Product Range | - |
