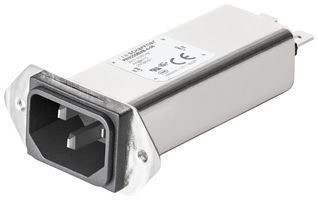

FN9255EMB-6-06
Filtered IEC Power Entry Module, C14, IEC C14, Medical, 6 A, 250 VAC
| Manufacturer | TE CONNECTIVITY - SCHAFFNER |
|---|---|
| Manufacturer Part No | FN9255EMB-6-06Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2978057 |
| Product Range | FN 9255 |
| Also Known As | 817841-SF |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$259.360 |
| 5+ | HK$241.970 |
| 10+ | HK$227.800 |
| 25+ | HK$214.170 |
| 50+ | HK$204.020 |
| 100+ | HK$200.210 |
Product Information
| Manufacturer | TE CONNECTIVITY - SCHAFFNER |
|---|---|
| Manufacturer Part No | FN9255EMB-6-06Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2978057 |
| Product Range | FN 9255 |
| Also Known As | 817841-SF |
| Technical Datasheet | |
| Connector Type | IEC C14 |
| Power Entry Module Applications | Medical |
| Current Rating | 6A |
| Voltage Rating | 250VAC |
| Switch Type | - |
| Fuse Holder | - |
| Fuse Size Held | - |
| Connector Terminals | Quick Connect |
| Connector Mounting | Snap-In, Flange Mount |
| IP Rating | IP40 |
| Product Range | FN 9255 |
| SVHC | No SVHC (17-Jan-2022) |
Product Overview
The dual-stage high-performance FN 9255 RFI filter series are an addition to the market proven FN 92XX filter families and are developed for high frequency applications, even above 30MHz. In fact, FN 9255 is the first inlet defined up to 300MHz at Schaffner. The adaption of the filter housing is done in length only, which means the FN 9222, FN 9233, FN 9244 and freshly introduced FN 9255 are fitting in the same cutout, allowing to exchange each other if the performance is not enough with one of the basic models.
- FN 9255 series RFI filter with IEC Inlet C14 or C20
- Exceptional attenuation performance from 150KHz to 300MHz due to dual-stage design
- High saturation resistance and excellent thermal behaviour
- Excellent performance/size ratio
- IP40 safety rating
- Standard housing with mounting flanges (rear mount)
- Faston 6.3 x 0.8mm (spade/soldering)
- Earth line choke version
Applications
Audio, Consumer Electronics, Industrial, Video & Vision
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Connector Type | IEC C14 |
|---|---|
| Current Rating | 6A |
| Switch Type | - |
| Fuse Size Held | - |
| Connector Mounting | Snap-In, Flange Mount |
| Product Range | FN 9255 |
| Power Entry Module Applications | Medical |
|---|---|
| Voltage Rating | 250VAC |
| Fuse Holder | - |
| Connector Terminals | Quick Connect |
| IP Rating | IP40 |
| SVHC | No SVHC (17-Jan-2022) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Thailand Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0056 |
