                      83753

                      Pressure Sensor, Absolute, 80 kPa, 120 kPa, Die

                      SENSONOR TECHNOLOGIES AS 83753

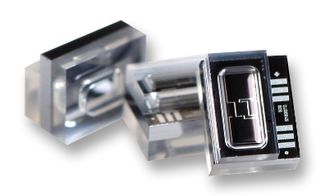

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerSENSONOR TECHNOLOGIES AS
                      Manufacturer Part No83753
                      Order Code1845333
                      Product RangeSW415 series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Manufactured

                      Product Information

                      ManufacturerSENSONOR TECHNOLOGIES AS
                      Manufacturer Part No83753
                      Order Code1845333
                      Product RangeSW415 series
                      Technical Datasheet

                      Data Sheet

                      Pressure TypeAbsolute
                      Operating Pressure Min80kPa
                      Operating Pressure Max120kPa
                      Supply Voltage Min-
                      Supply Voltage Max-
                      Sensor Case / PackageDie
                      No. of Pins6Pins
                      Sensor Output Type-
                      Accuracy-
                      Pressure Port TypeNo Port
                      Sensor Mounting-
                      Output Interface-
                      Media Type-
                      Operating Temperature Min-40°C
                      Operating Temperature Max125°C
                      Product RangeSW415 series
                      Qualification-
                      SVHCNo SVHC (15-Jan-2018)

                      Product Overview

                      The 83753 is an uncompensated piezoresistive Pressure Sensor die is bulk micro machined and designed for affordable and reliable barometric pressure measurements. Sensor has excellent media compatibility due to the patented triple stack sensor design with buried backside piezoresistive elements. With the backside media access, the piezo resistors will not come in direct contact with the measurement media. The design improves stability and sensor lifetime compared to many traditional sensor designs. The design and performance of SW415-B makes it ideal for high accuracy measurements, also in harsh environments. The long term stability is outstanding and has been proven in applications during a period of more than 10 years. The sensor die can be connected to passive compensation and/or signal conditioning as required for a given application. All sensor die products are 100% electrically tested and visually inspected.

                      • High reliability and low drift over lifetime
                      • High media compatibility
                      • Backside media access
                      • Wide temperature operating range
                      • Single side bond pad access

                      Applications

                      Sensing & Instrumentation, Industrial

                      Technical Specifications

                      Pressure Type

                      Absolute

                      Operating Pressure Max

                      120kPa

                      Supply Voltage Max

                      -

                      No. of Pins

                      6Pins

                      Accuracy

                      -

                      Sensor Mounting

                      -

                      Media Type

                      -

                      Operating Temperature Max

                      125°C

                      Qualification

                      -

                      Operating Pressure Min

                      80kPa

                      Supply Voltage Min

                      -

                      Sensor Case / Package

                      Die

                      Sensor Output Type

                      -

                      Pressure Port Type

                      No Port

                      Output Interface

                      -

                      Operating Temperature Min

                      -40°C

                      Product Range

                      SW415 series

                      SVHC

                      No SVHC (15-Jan-2018)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      3 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Norway
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85423990
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (15-Jan-2018)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.001806
