DELTA6B/X/SMAM/S/S/11

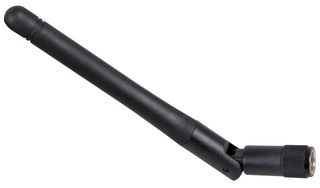

The Siretta DELTA6B/X/SMAM/S/S/11 is a high-performance dual-band Wi Fi antenna designed to enhance wireless connectivity in Wi Fi, Bluetooth® and Zigbee® applications. Operating across the 2.4GHz to 2.5GHz band, the antenna delivers up to 5dBi gain to improve signal strength and coverage. Its hinged tilt-and-swivel design allows flexible positioning for optimum performance, while the SMA male connector enables direct connection to wireless routers, gateways, IoT devices and networking equipment. The ground-plane independent design simplifies installation in a wide range of applications.

• Ideal for wireless routers, access points, gateways, industrial IoT devices and short-range communications
• Dual-band wireless antenna for Wi Fi, Bluetooth® and Zigbee® applications
• Up to 5dBi gain for enhanced wireless signal strength and coverage
• Operates across the 2.4GHz to 2.5GHz frequency band
• Hinged tilt-and-swivel design allows positioning at 0°, 45° and 90° for optimal performance
• SMA male connector for direct connection to compatible wireless devices
• Suitable for WiFi 4, WiFi 5 and WiFi 6 networks
• Compatible with Bluetooth®, BLE, Zigbee® and IEEE 802.15.4 applications
• Omnidirectional radiation pattern provides reliable all-round wireless coverage
• Ground-plane independent design enables flexible installation
• 50Ω impedance and 1W power rating for compatibility with standard wireless equipment

Applications

Wireless
