| Manufacturer | SOURIAU-SUNBANK / EATON |
|---|---|
| Manufacturer Part No | SM16ML11D70Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 3651988 |
| Product Range | Souriau Trim Trio |
| Your Part Number | |
| Technical Datasheet |
4,954 In Stock
Need more?
4,954 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$17.120 |
| 10+ | HK$14.980 |
| 100+ | HK$14.840 |
| 500+ | HK$14.700 |
| 1000+ | HK$14.400 |
| 2500+ | HK$10.950 |
Price for:Each
Minimum: 1
Multiple: 1
HK$17.12
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SOURIAU-SUNBANK / EATON |
|---|---|
| Manufacturer Part No | SM16ML11D70Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 3651988 |
| Product Range | Souriau Trim Trio |
| Technical Datasheet | |
| Product Range | Souriau Trim Trio |
| Contact Gender | Pin |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 16AWG |
| Wire Size AWG Min | 18AWG |
| For Use With | Metalok Bantam, Qikmate, UTG and UTO Housings |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (17-Jan-2022) |
Product Overview

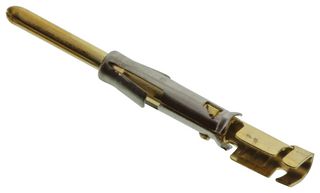

The SM16ML11D70 is a Stamped and Formed Contact for TRIM TRIO connectors, male type, wire + insulation crimp for size-16. The contact consist of a crimp body made of high conductive copper alloy and a stainless steel retaining spring featuring retention in the housing cavity and a closed entry socket to prevent probe damage.
- 13A Current rating
- 6mΩ Contact resistance
- 65N Minimum Contact retention in body
Applications
Industrial
Technical Specifications
| Product Range | Souriau Trim Trio |
|---|---|
| Contact Termination Type | Crimp |
| Wire Size AWG Min | 18AWG |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (17-Jan-2022) |
| Contact Gender | Pin |
|---|---|
| Wire Size AWG Max | 16AWG |
| For Use With | Metalok Bantam, Qikmate, UTG and UTO Housings |
| Contact Material | Copper Alloy |
Technical Docs (1)
Alternatives for SM16ML11D70
6 Products Found
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000504 |
