LS03-1A66-PP-500W
Float Switch, LS03 Series, Horizontal, SPST-NO, Polypropylene, 10 W, 200 Vdc

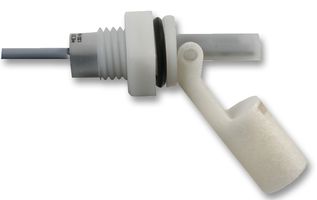

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoLS03-1A66-PP-500W
Order Code1079491
Product RangeLS03 Series
Your Part Number
Technical Datasheet
209 In Stock
Need more?
209 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$100.850 |
| 10+ | HK$90.240 |
| 25+ | HK$87.180 |
| 50+ | HK$85.750 |
| 100+ | HK$84.320 |
| 500+ | HK$82.640 |
| 1000+ | HK$80.950 |
Price for:Each
Minimum: 1
Multiple: 1
HK$100.85
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoLS03-1A66-PP-500W
Order Code1079491
Product RangeLS03 Series
Technical Datasheet
Level Switch TypeLevel Sensor
Sensor Body MaterialPP (Polypropylene)
Media TypeDilute Acids, Water
Output Current1A
Process Connection Type-
Operating Pressure Max-
Housing MaterialPP (Polypropylene)
Switch OutputSPST-NO
Electrical ConnectionCable
Supply Voltage Min-
Supply Voltage Max-
Operating Temperature Min-20°C
Operating Temperature Max90°C
Product RangeLS03 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The LS03-1A66-PP-500W is a standard Liquid Level Sensor with magnetic floats, PP (polypropylene) body and normally open contact. The sensor has to be mounted horizontally for best results. The cable cut-length with 30mm of separated wire with 5mm of wire stripped and tinned termination.
- High power switches
- IP68 (only to screw thread) Flammability
- 500mm Cable length
Applications
Industrial, Consumer Electronics, Automotive, Test & Measurement, Sensing & Instrumentation
Technical Specifications
Level Switch Type
Level Sensor
Media Type
Dilute Acids, Water
Process Connection Type
-
Housing Material
PP (Polypropylene)
Electrical Connection
Cable
Supply Voltage Max
-
Operating Temperature Max
90°C
SVHC
No SVHC (17-Jan-2023)
Sensor Body Material
PP (Polypropylene)
Output Current
1A
Operating Pressure Max
-
Switch Output
SPST-NO
Supply Voltage Min
-
Operating Temperature Min
-20°C
Product Range
LS03 Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0218
