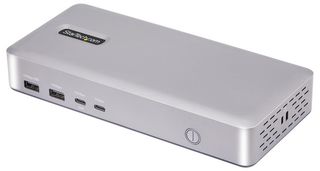

155UE-USB4-DOCK

The Startech 155UE-USB4-DOCK is a high performance mobile docking station that effortlessly turns a USB4 enabled laptop into a dual monitor workstation. Equipped with dual HDMI 2.1 ports that support up to dual 4K @120Hz or single 8K @60Hz with no software or compression. The dock is compatible with both Windows 10/11 and ChromeOS, providing optimal performance on Thunderbolt 4 and USB4 devices.

• Provides dual HDMI 2.1 video outputs, supporting dual 4K @60Hz (RGB 4:4:4) or dual 4K @120Hz (4:2:2)
• Dock can also support a single display at up to 8K @30Hz (RGB 4:4:4) or 8K @60Hz (4:2:2)
• Integrated six port USB hub with 2x 10Gb/s USB-A, 2x 5Gb/s USB-A, 1x 10Gb/s USB-C and 1x 5Gb/s USB-C
• Hub includes two fast charging ports: 1x USB-A BC 1.2 7.5W, 1x USB-C PD 20W
• 2.5GbE Ethernet port with PXE boot and Wake-on-LAN (WoL) support
• Includes 180W power adaptor and supports 100W USB Power Delivery
• USB4 40Gb/s interface (Thunderbolt 3/4, USB 3.2)
• Screw-lock USB4 host cable and K-Slot & Nano lock slots for added security
• Supports Windows 10/11 and ChromeOS
• Dimensions (HxWxD): 34x210x95mm
• 3 Year manufacturer warranty

Contents

Docking station, AC adaptor (UK/EU), USB4 cable and user guide
