2S232422485-PC-CARD
Serial Card, 2-Port Serial PCIe Card, Dual-Port RS232/RS422/RS485 (DB9) Card, TAA-Compliant

| Manufacturer | STARTECH |
|---|---|
| Manufacturer Part No | 2S232422485-PC-CARDCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4415596 |
| Also Known As | GTIN UPC EAN: 0065030900270 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$1,001.300 |
Product Information
| Manufacturer | STARTECH |
|---|---|
| Manufacturer Part No | 2S232422485-PC-CARDCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4415596 |
| Also Known As | GTIN UPC EAN: 0065030900270 |
| Technical Datasheet | |
| Networking Interface | Serial |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

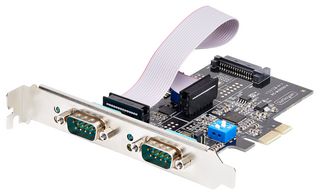

2S232422485-PC-CARD is a dual-port PCI Express to RS232/RS422/RS485 (DB9) serial card. Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices. This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe serial card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).
- Easily add two external DB9 serial ports to your PC, ideal for legacy devices
- Each port operates independently, with DIP switches for selecting RS232, RS422 or RS485 connection
- Configurable per-port power over pin 9 via aux SATA power: 12V (1.5A), 5V (1.5A) or no power (RI)
- Per-port power modes are configured via jumpers
- Asix AX99100 chip and 16C1050 UART with compatibility for 16C450, 16C550, 16C650, 16C750, 16C950
- Max baud rate of 921.6Kb/s per port
- COM retention and 256 Byte FIFO
- Even, odd, none, space, and mark parity modes
- Supports Windows 7/8/10/11, Server 2016/2019/2022 & Linux 2.6.13+ (LTS versions only)
- ESD Protection: ±8kV (Contact), ±15kV (Air), ±15kV (HBM)
- Supplied with two optional low profile brackets
- 2 year manufacturer warranty
Contents
Card, LP brackets, ribbon cable and user guide
Technical Specifications
| Networking Interface | Serial |
|---|---|
| SVHC | To Be Advised |
| Product Range | - |
|---|
Technical Docs (1)
Alternatives for 2S232422485-PC-CARD
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84718000 |
| US ECCN: | 5A991.b.1 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .14 |
