Print Page
65.9194-22
Banana Test Connector, 2mm, Receptacle, Panel Mount, 10 A, 600 V, Gold Plated Contacts, Red

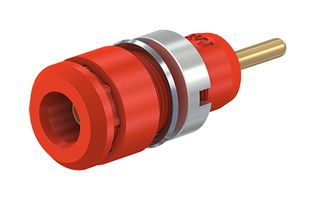

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTAUBLI
Manufacturer Part No65.9194-22
Order Code1085556
Product RangeSLB2-R Series
Technical Datasheet
74 In Stock
Need more?
74 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$28.470 |
| 50+ | HK$27.860 |
| 100+ | HK$27.030 |
Price for:Each
Minimum: 1
Multiple: 1
HK$28.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTAUBLI
Manufacturer Part No65.9194-22
Order Code1085556
Product RangeSLB2-R Series
Technical Datasheet
Connector MountingPanel Mount
Current Rating10A
Voltage Rating600V
Contact PlatingGold Plated Contacts
Connector ColourRed
Contact MaterialBrass
Contact Termination TypeQuick Connect
Product RangeSLB2-R Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The SLB2-R series insulated Ø2mm Rigid Socket accepting spring-loaded Ø2mm plugs with rigid insulating sleeve. It is made of brass. The socket is surface-mounted or assembled flush into predrilled panels of plastic and metal. It has 2.8 x 0.8mm flat connecting tab and Ø1.9mm round connecting pin connections.
Applications
Industrial
Technical Specifications
Gender
Receptacle
Current Rating
10A
Contact Plating
Gold Plated Contacts
Contact Material
Brass
Product Range
SLB2-R Series
Connector Mounting
Panel Mount
Voltage Rating
600V
Connector Colour
Red
Contact Termination Type
Quick Connect
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003
