AEKD-USBTYPEC1
Evaluation Board, SPC58 Chorus Series MCUs, USB Type-C Power Delivery Development, Automotive

| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | AEKD-USBTYPEC1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2981000 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$1,893.440 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | AEKD-USBTYPEC1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2981000 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | SPC58, STUSB1702 |
| Kit Application Type | Interface |
| Application Sub Type | USB Power Delivery (PD) Controller |
| Core Architecture | e200z4 |
| Core Sub-Architecture | - |
| Silicon Family Name | SPC5 |
| Kit Contents | AutoDevKit SPC58EC-DISP\AEK-USB-2TYPEC1 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

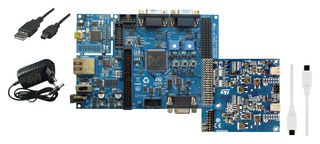

USB Type-C™ and USB power delivery evaluation kit based on the automotive grade SPC58 MCU and AutoDevKit development initiative. It is designed to let user test the USB power delivery protocol stack implemented on the ASIL-B automotive grade 32bit Power Architecture® microcontroller SPC58 C (Chorus) line (from 1 to 10MB flash, single or multi-core, including ISO CAN FD and Ethernet peripherals). This Kit consisting of two boards Dual-port USB Type-C function board (AEK-USB-2TYPEC1) and SPC58 Chorus discovery board (SPC58EC-DISP).
- USB power delivery software stack pre-loaded on SPC58 discovery board
- Power board connector on USB function board
- Power Data Objects (PDO) (5V, 500mA available without external power board)
- Downloadable (STSW-USB2TYPEC1) compiled flash image firmware
- All key ST components are qualified automotive grade
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Interface |
| Core Architecture | e200z4 |
| Silicon Family Name | SPC5 |
| Product Range | - |
| Silicon Core Number | SPC58, STUSB1702 |
|---|---|
| Application Sub Type | USB Power Delivery (PD) Controller |
| Core Sub-Architecture | - |
| Kit Contents | AutoDevKit SPC58EC-DISP\AEK-USB-2TYPEC1 |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .4 |
