EVALSTPM33
Evaluation Board, STPM33 Energy Meter, Single Phase, Class 0.2, Tamper Monitor
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | EVALSTPM33Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3132774 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$643.140 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | EVALSTPM33Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3132774 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STPM33 |
| Kit Application Type | Power Management |
| Application Sub Type | Energy Meter |
| Kit Contents | Evaluation Board STPM33 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

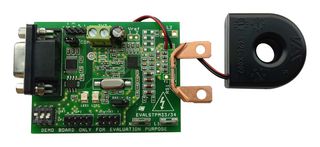

STPM33 energy metering evaluation board is a class 0.2, single phase meter which includes tamper monitoring, CT and shunt current sensors based on the STPM33 for power line systems with Vnom = 140 to 300V(RMS), Inom / Imax = 5/100A(RMS), flin = 50/60Hz ± 10% and Tamb = -40 to +85°C. Measured active/reactive power can be output from two programmable LEDs on the board. The board can be interfaced with a PC running evaluation software through an isolated RS232 port or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading. The board also has SPI/UART pins available to interface a microcontroller for application development.
- 0.2% accuracy single-phase meter with tamper monitoring
- Tamper detection though neutral current monitoring
- Connector for USB isolated hardware programmer tool STEVAL-IPE023V1 and PC GUI
- RS232 and UART isolated connectors to PC GUI
- Digital expansion to external system-on-chip or MCU
- 3.3V power supply, external or through STEVAL-IPE023V1 isolated USB board
- IEC61000 standard compliant
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board STPM33 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | STPM33 |
|---|---|
| Application Sub Type | Energy Meter |
| Product Range | - |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90230080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .003 |
