STEVAL-ISA102V2

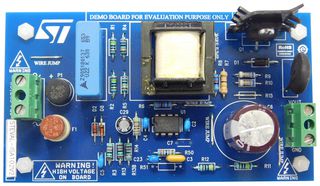

Evaluation Board, Power Factor Correction, 80W High Performance Transition Mode based on L6562A

STMICROELECTRONICS STEVAL-ISA102V2

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
STEVAL-ISA102V2
Order Code:
2675787
Technical Datasheet:
STEVAL-ISA102V2   Datasheet
See all Technical Docs

Product Overview

The STEVAL-ISA102V2 from STMicroelectronics is a 80W high performance transition mode PFC evaluation board based on L6562A. The L6562A is a current-mode PFC controller operating in transition mode (TM). With the same pin-out as its L6562 predecessor, the L6562A offers improved performance mainly in terms of efficiency and noise immunity. The STEVAL-ISA102V2 implements an 80W, wide-range mains input and a PFC pre-conditioner suitable for lighting, adapters and consumer SMPS, etc.
  • Line voltage range from 88VAC to 265VAC
  • Minimum line frequency (fL ) is 47Hz
  • Regulated output voltage is 400V
  • Rated output power is 80W
  • Maximum 2fL output voltage ripple is 10Vp-p
  • Hold-up time is 20ms (VDROP after hold-up time is 300V)
  • Minimum switching frequency is 35KHz
  • Minimum estimated efficiency is 92% (VIN = 90VAC , POUT = 80W)
  • PCB type and size is single side, 35µm, CEM-1, 108mm x 57mm
