35RAPC4BH3
Phone Audio Connector, 3 Contacts, Jack, 3.5 mm, PCB Mount, Silver Plated Contacts, Plastic Body

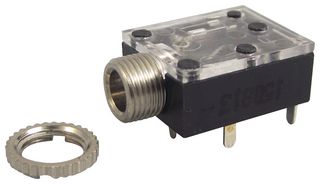

Image is for illustrative purposes only. Please refer to product description.
12,900 In Stock
Need more?
2578 Delivery in 1-2 Business Days(SG stock)
2745 Delivery in 3-4 Business Days(UK stock)
7577 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | HK$33.630 |
| 10+ | HK$32.710 |
| 25+ | HK$30.950 |
| 50+ | HK$29.940 |
| 100+ | HK$28.770 |
| 250+ | HK$27.000 |
| 560+ | HK$25.670 |
| 1120+ | HK$25.160 |
| 2800+ | HK$22.990 |
Price for:Each
Minimum: 1
Multiple: 1
HK$33.63
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No35RAPC4BH3
Order Code1608406
Technical Datasheet
No. of Contacts3Contacts
GenderJack
Pin Diameter3.5mm
Connector MountingPCB Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialPlastic Body
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The 35RAPC4BH3 is a 3.5mm Mono and Stereo PC Board Horizontal-mount Jack with black PBT housing, nickel-plated brass bushing, tin-plated phosphor bronze springs and a clear polycarbonate cover. The compact design and an easy of installation onto a PCB make this an ideal solution.
- 5000 cycles Life
- 50MΩ Minimum insulation resistance
- UL94V-0 Flammability rating
Applications
Audio
Technical Specifications
No. of Contacts
3Contacts
Pin Diameter
3.5mm
Contact Plating
Silver Plated Contacts
Product Range
-
Gender
Jack
Connector Mounting
PCB Mount
Connector Body Material
Plastic Body
SVHC
No SVHC (27-Jun-2024)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002041
