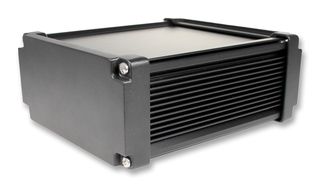

AWN16-9-28EBB
Metal Enclosure, IP67, EMC, Heavy Duty, Waterproof, Heat Resistant, Small, Extruded Aluminium
12 In Stock
Need more?
12 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$1,370.860 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,370.86
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TAKACHI |
|---|---|
| Manufacturer Part No | AWN16-9-28EBBCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2431179 |
| Product Range | AWN |
| Also Known As | CDM8822BK |
| Technical Datasheet | |
| Enclosure Type | Small |
| Enclosure Material | Extruded Aluminium |
| External Height - Metric | 81.3mm |
| External Width - Metric | 156.3mm |
| External Depth - Metric | 275mm |
| IP Rating | IP67 |
| Body Colour | Black |
| NEMA Rating | - |
| External Height - Imperial | 3.201" |
| External Width - Imperial | 6.15" |
| External Depth - Imperial | 10.83" |
| Product Range | AWN |
| SVHC | No SVHC (21-Jan-2025) |
| Configurable | No |
Product Overview
The AWN16-9-28EBB is an EMC Shielded Heat Sink Case made of aluminium with protective silicone boot. Heavy duty enclosure, heat sink extrusion body and die-cast panels. PCB or chassis are horizontally mountable by sliding into grooved inner body frame. Suitable for measuring instruments, industrial control box and industrial camera housing.
- Designed for a tough environment
- Highly waterproof and heat resistant
Applications
Test & Measurement, Industrial
Technical Specifications
| Enclosure Type | Small |
|---|---|
| External Height - Metric | 81.3mm |
| External Depth - Metric | 275mm |
| Body Colour | Black |
| External Height - Imperial | 3.201" |
| External Depth - Imperial | 10.83" |
| SVHC | No SVHC (21-Jan-2025) |
| Enclosure Material | Extruded Aluminium |
|---|---|
| External Width - Metric | 156.3mm |
| IP Rating | IP67 |
| NEMA Rating | - |
| External Width - Imperial | 6.15" |
| Product Range | AWN |
| Configurable | No |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 76129080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .446335 |
