2301838-2
D Sub Connector, DB9, Standard, Receptacle, 9 Contacts, DE, Solder

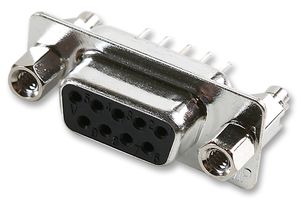

Image is for illustrative purposes only. Please refer to product description.
13,001 In Stock
10,800 more incoming. You can reserve stock now
4461 Delivery in 1-2 Business Days(SG stock)
8540 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$22.900 |
| 10+ | HK$18.960 |
| 25+ | HK$15.600 |
| 90+ | HK$15.520 |
| 270+ | HK$13.430 |
| 540+ | HK$12.860 |
Price for:Each
Minimum: 1
Multiple: 1
HK$22.90
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2301838-2
Order Code2857977
Technical Datasheet
D Sub Connector TypeStandard
Product Range-
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (21-Jan-2025)
Product Overview
2301838-2 is a dual row, 9 position PCB D-sub receptacle connector.
- Vertical PCB orientation
- Straight contact shape & form
- 1.5A contact current rating (max)
- With PCB mount retention
- Boardlock PCB mount retention type
- With mating retention
- 4-40 screwlock mating retention type
- Operating temperature range from -55 to 105°C [ -67 to 221°F ]
Technical Specifications
D Sub Connector Type
Standard
Product Range
-
D Sub Shell Size
DE
Connector Mounting
Through Hole Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
Solder
Contact Material
Phosphor Bronze
Connector Body Material
Steel Body
Alternatives for 2301838-2
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
