HVD3106A
Oscilloscope Probe, High-Voltage Differential Probe, 120 MHz, 1 kV, 50:1, 500:1

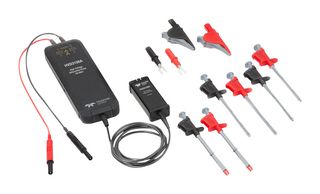

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | HVD3106ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 4656068 |
| Product Range | HVD3000A Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | HK$33,089.320 |
Price for:Each
Minimum: 1
Multiple: 1
HK$33,089.32
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | HVD3106ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 4656068 |
| Product Range | HVD3000A Series |
| Technical Datasheet | |
| Oscilloscope Probe Function | High-Voltage Differential Probe |
| Bandwidth | 120MHz |
| Input Voltage Max | 1kV |
| Test Probe Attenuation | 50:1, 500:1 |
| For Use With | Teledyne Lecroy WaveSurfer 3000z/4000HD, HDO4000A, HDO6000B, WaveRunner 9000 Series Oscilloscopes |
| Product Range | HVD3000A Series |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
HVD3106A is a HVD3000A series, 1KV, 120MHz high voltage differential probe with 2m cable. The HVD3000A series high voltage differential probes provide high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments. The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.
- 2.9ns rise time, 50x / 500x attenuation, 400V/ns (maximum) slew rate
- Widest differential voltage ranges available
- Exceptional common-mode rejection ratio (CMRR) across a broad frequency range
- 1% gain accuracy
- High offset capability at both high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
- AutoZero with auto disconnect switch
- Wide oscilloscope compatibility
- ProBus interface, 40cm input lead length
Technical Specifications
| Oscilloscope Probe Function | High-Voltage Differential Probe |
|---|---|
| Input Voltage Max | 1kV |
| For Use With | Teledyne Lecroy WaveSurfer 3000z/4000HD, HDO4000A, HDO6000B, WaveRunner 9000 Series Oscilloscopes |
| SVHC | No SVHC (21-Jan-2025) |
| Bandwidth | 120MHz |
|---|---|
| Test Probe Attenuation | 50:1, 500:1 |
| Product Range | HVD3000A Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
