HVD3206A-6M
Oscilloscope Probe, High-Voltage Differential Probe, 80 MHz, 2 kV, 50:1, 500:1

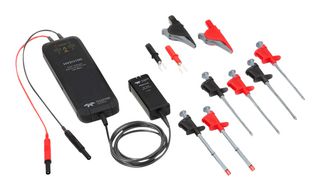

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | HVD3206A-6MCopy |
| Manufacturer Standard Lead Time | 1 weeks |
| Order Code | 4656073 |
| Product Range | HVD3000A Series |
| Your Part Number | |
| Technical Datasheet |
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$43,735.430 |
Price for:Each
Minimum: 1
Multiple: 1
HK$43,735.43
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | HVD3206A-6MCopy |
| Manufacturer Standard Lead Time | 1 weeks |
| Order Code | 4656073 |
| Product Range | HVD3000A Series |
| Technical Datasheet | |
| Oscilloscope Probe Function | High-Voltage Differential Probe |
| Bandwidth | 80MHz |
| Input Voltage Max | 2kV |
| Test Probe Attenuation | 50:1, 500:1 |
| For Use With | Teledyne LeCroy WaveSurfer 3000z/4000HD High Definition & WaveRunner 9000 Oscilloscopes |
| Product Range | HVD3000A Series |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
HVD3206A-6M is a 2KV, 120MHz high voltage differential probe with 6m cable and auto zero disconnect. This probe provides high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments. The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.
- 4.4ns rise time, 1Mohm output termination
- Common mode voltage range ±2000 V (DC + peak AC)
- 1% gain accuracy
- High offset capability at both high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
- Wide oscilloscope compatibility
- Operating temperature range from 0°C to 50°C
Contents
High voltage differential probe, 2KV rated plunger alligator clips x 2, Case, Foam, Operator's manual.
Technical Specifications
| Oscilloscope Probe Function | High-Voltage Differential Probe |
|---|---|
| Input Voltage Max | 2kV |
| For Use With | Teledyne LeCroy WaveSurfer 3000z/4000HD High Definition & WaveRunner 9000 Oscilloscopes |
| SVHC | No SVHC (21-Jan-2025) |
| Bandwidth | 80MHz |
|---|---|
| Test Probe Attenuation | 50:1, 500:1 |
| Product Range | HVD3000A Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
