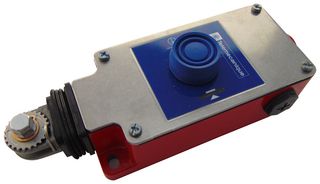

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer Part No | XY2CH13270Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2663446 |
| Product Range | Preventa XY2 Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$1,430.820 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,430.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer Part No | XY2CH13270Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2663446 |
| Product Range | Preventa XY2 Series |
| Technical Datasheet | |
| Contact Configuration | DPST-NC |
| Switch Terminals | Screw Clamp |
| Contact Current Max | 3A |
| Contact Voltage AC Nom | 240V |
| Product Range | Preventa XY2 Series |
| Pushbutton Actuator Style | Round |
| IP Rating | IP65 |
Product Overview
XY2CH13270 is a XY2CH range emergency stop rope pull switch. Standards include EN/ISO 13850, Machinery directive 2006/42/EC, EN/IEC 60947-5-1, EN/IEC 60947-5-5, work equipment directive 2009/104/EC, EN/IEC 60204-1.
- 30m trigger cable maximum length
- Zamak body, stainless steel cover material
- 2 NC contacts type and composition
- [Ithe] conventional enclosed thermal current is 10A
- [Uimp] rated impulse withstand voltage is 6kV conforming to EN/IEC 60947-1
- Ambient air temperature for operation range from -25 to 70°C
- IP65 conforming to IEC 60529 IP degree of protection
- Connections - terminals: screw clamp terminal, 1 x 0.5...2 x 1.5mm²
- Slow-break contact operation
Technical Specifications
| Contact Configuration | DPST-NC |
|---|---|
| Contact Current Max | 3A |
| Product Range | Preventa XY2 Series |
| IP Rating | IP65 |
| Switch Terminals | Screw Clamp |
|---|---|
| Contact Voltage AC Nom | 240V |
| Pushbutton Actuator Style | Round |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Morocco Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.006 |
