15010
Oscilloscope Probe, High-Voltage Divider, 40 MHz, 10 kV, 1000:1, Analog or Digital Oscilloscopes

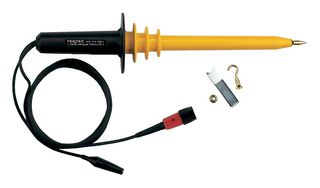

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TESTEC |
|---|---|
| Manufacturer Part No | 15010Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3373859 |
| Also Known As | TT-HVP 15B |
| Your Part Number | |
| Technical Datasheet |
4 In Stock
Need more?
1 Delivery in 1-2 Business Days(SG stock)
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$4,412.940 |
Price for:Each
Minimum: 1
Multiple: 1
HK$4,412.94
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TESTEC |
|---|---|
| Manufacturer Part No | 15010Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3373859 |
| Also Known As | TT-HVP 15B |
| Technical Datasheet | |
| Oscilloscope Probe Function | High-Voltage Divider |
| Bandwidth | 40MHz |
| Input Voltage Max | 10kV |
| Test Probe Attenuation | 1000:1 |
| For Use With | Analog or Digital Oscilloscopes |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
TT-HVP 15 B high-voltage probe for use with analogue or digital oscilloscope with an impedance of 1Mohm. The probe has a divider ratio of 1000:1, which extends the voltage range up to 20KV DC from 7KV / AC. The connection is via a 2meter long test lead with BNC connectors. A separate ground lead with alligator clip is available.
- Bandwidth 40MHz
- Meets EN61010-031:2015 standard
Technical Specifications
| Oscilloscope Probe Function | High-Voltage Divider |
|---|---|
| Input Voltage Max | 10kV |
| For Use With | Analog or Digital Oscilloscopes |
| SVHC | No SVHC (04-Feb-2026) |
| Bandwidth | 40MHz |
|---|---|
| Test Probe Attenuation | 1000:1 |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .55 |
