| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TOP 200-124Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 1869145 |
| Product Range | TOP 200 Series |
| Your Part Number | |
| Technical Datasheet |
85 In Stock
Need more?
85 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$972.600 |
| 5+ | HK$926.300 |
| 10+ | HK$907.050 |
| 50+ | HK$863.890 |
Price for:Each
Minimum: 1
Multiple: 1
HK$972.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TOP 200-124Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 1869145 |
| Product Range | TOP 200 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | - |
| Power Rating (Convection Cooling) | 200W |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 8.3A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Output Voltage - Output 4 | - |
| Output Current - Output 4 | - |
| Product Range | TOP 200 Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

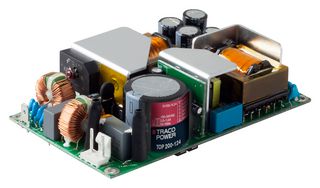

The TOP 200-124 is a 24V/200W AC/DC Power Supply feature the highest power rating in the industry standard 3 x 5-inch footprint. It can supply up to 200W output power with convection cooling over an industrial operating temperature range of -25 to 70°C. This performance could be realized by a state of the art design providing an extremely high efficiency of <gt/>90% which eliminates the need for a dedicated power supply cooling fan. TOP-200-series, high reliability is provided by use of industrial quality grade components and an excellent thermal management.
- Universal input
- Low leakage current
- Safety class-l and class-II operation
- Power back immunity
- -25 to 70°C Operating temperature range
Applications
Commercial, Industrial, Consumer Electronics
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Power Rating (Forced Cooling) | - |
| Input Voltage VAC | 85V AC to 264V AC |
| Output Voltage - Output 1 | 24VDC |
| Output Voltage - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 4 | - |
| Product Range | TOP 200 Series |
| No. of Outputs | 1 Output |
|---|---|
| Power Rating (Convection Cooling) | 200W |
| Power Supply Output Type | Fixed |
| Output Current - Output 1 | 8.3A |
| Output Current - Output 2 | - |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| SVHC | Lead (04-Feb-2026) |
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .315 |
