CNS471A6
Decade Divider, 100 ohm to 9M ohm, CNS 471 Series, 6 Elements, SIP

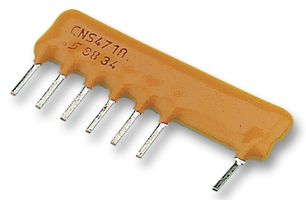

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | CNS471A6Copy |
| Manufacturer Standard Lead Time | 40 weeks |
| Order Code | 1165210 |
| Product Range | CNS 471 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$1,359.960 |
| 2+ | HK$1,285.680 |
| 3+ | HK$1,211.390 |
| 5+ | HK$1,137.110 |
| 10+ | HK$1,062.820 |
| 20+ | HK$1,041.570 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,359.96
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | CNS471A6Copy |
| Manufacturer Standard Lead Time | 40 weeks |
| Order Code | 1165210 |
| Product Range | CNS 471 Series |
| Technical Datasheet | |
| Resistance R1 | - |
| Product Range | CNS 471 Series |
| Resistance R2 | - |
| No. of Elements | 6Elements |
| Network Circuit Type | Voltage Divider |
| Resistor Case / Package | SIP |
| No. of Pins | 7Pins |
| Power Rating per Resistor | 100mW |
| Absolute Resistance Tolerance | ± 0.1% |
| Absolute TCR | ± 25ppm/K |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
The CNS471A6 is a 9MΩ 100mW 7-pin 6-element single-in-line through-hole thin film Resistor Network with alumina substrate and fluidized epoxy coating. By using this integrated thin film network instead of discrete resistor sets designers gain several advantages of smaller size, better overall tracking and greater reliability.
- Better overall tracking
- Tight TCR tracking down to 2.5ppm typical
Technical Specifications
| Resistance R1 | - |
|---|---|
| Resistance R2 | - |
| Network Circuit Type | Voltage Divider |
| No. of Pins | 7Pins |
| Absolute Resistance Tolerance | ± 0.1% |
| Automotive Qualification Standard | - |
| Product Range | CNS 471 Series |
|---|---|
| No. of Elements | 6Elements |
| Resistor Case / Package | SIP |
| Power Rating per Resistor | 100mW |
| Absolute TCR | ± 25ppm/K |
| SVHC | No SVHC (23-Jan-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85332100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004082 |
