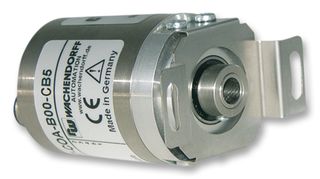

WDGA 36E-06-1218-COA-B00-CB5
Rotary Encoder, Magnetic, Absolute, 0 Detents, Vertical, Without Push Switch
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWACHENDORFF
Manufacturer Part NoWDGA 36E-06-1218-COA-B00-CB5
Order Code2364960
Product RangeWDGA 36E
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$3,606.670 |
| 5+ | HK$3,568.440 |
| 10+ | HK$3,530.210 |
| 25+ | HK$3,459.610 |
| 50+ | HK$3,389.010 |
| 100+ | HK$3,318.400 |
Price for:Each
Minimum: 1
Multiple: 1
HK$3,606.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWACHENDORFF
Manufacturer Part NoWDGA 36E-06-1218-COA-B00-CB5
Order Code2364960
Product RangeWDGA 36E
Technical Datasheet
Encoder TechnologyMagnetic
Encoder TypeAbsolute
Encoder Resolution-
No. of Detents0 Detents
OrientationVertical
Push SwitchWithout Push Switch
Encoder OutputBinary
Encoder MountingFlange Mount
Product RangeWDGA 36E
Rotational Speed Max12000rpm
Rotational Life Cycles-
No. of Channels1Channels
Shaft TypeHollow Shaft
Shaft Length-
Shaft Diameter6mm
Supply Voltage Min10V
Supply Voltage Max32V
Operating Temperature Min-40°C
Operating Temperature Max85°C
IP RatingIP65, IP67
TerminationWire Leaded
Product Overview
The WDGA 36E-06-1218-COA-B00-CB5 is a binary Hollow Encoder with EnDra® multi-turn technology. The interface provides the evaluation electronics with the complete position value, consisting of the combination of the single-turn position based on the number of revolutions.
